China Automotive Coil Winding Equipment Manufacturers Suppliers Factory - Good Price

Your Professional Automotive Coil Winding Equipment Supplier

Suzhou Shuangqing Electronic Machinery Co., Ltd.he main products are: fully automatic winding machines, flat wire winding machines, reactor winding machines, motor coil winding machines, computer numerical control winding machines, product automatic testing equipment, transformer automatic testing production line, automatic sorting equipment, electronic equipment, Shuangqing Electronics always adheres to the ever-changing corporate philosophy and provides customers with high-quality products. After years of development, Shuangqing's various products are sold in various provinces and cities in China, and some products fill the gaps in the domestic market.

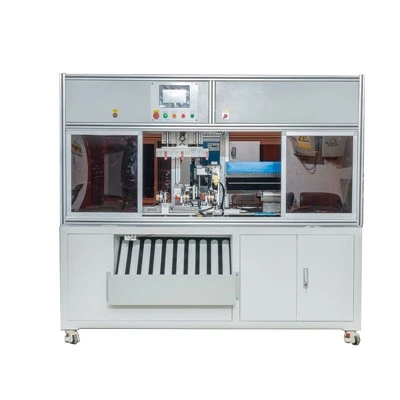

Fully Automatic Car Antenna Winding Machine
A high-precision servo motor is used to provide the main rotation support for the winding action. Its speed and torque can be adjusted according to the winding requirements to adapt to wires of

Why Choose Us

Quality Control
From raw material processing to complete machine assembly, every link is strictly controlled.

Our Service
Establish a complete after-sales response mechanism to handle customer feedback issues in a timely manner.Provide equipment repair and maintenance services to extend the service life of equipment.

Our Certificate
The company has the qualifications of innovative small and medium-sized enterprises, high-tech enterprises, private technology enterprises, and technology-based small and medium-sized enterprises. At the same time, the company holds a number of patent certificates, covering winding machine technology innovation, full-automatic winding machine winding mechanism technology, and wire-taking technology.

Professional team
With more than 10 years experience in the area, our R&D team can design and manufacture the machines as requested to meet different needs and continuously carry out technical innovation on products to improve product performance.

Automotive Coil Winding Equipment Specifications

Parameters
Number of Spindles	Single spindle
Adhesive mode	Hot air or alcohol
Applicable wire diameter range	0.03-0.5mm
Spindle drive mode	Servo motor
Spindle maximum speed	Up to 2800rpm
Stop accuracy of	0.1Ts
Winding maximum outside diameter	80mm
Winding minimum inside diameter	No requirement
End the lead position	Adjustable
Lead length	Generally 60mm(can adjustable)
Maximum winding width	24mm
Winding setting accuracy of	0.01mm
Winding width is set to	0.01mm
Appear angle	Can adjustable
Spindle motor	400W servo motor
Spreading motor	100W servo motor
Stripping-mold motor	400W Servo motor
Power supply	220V 50HZ
Compressed air pressure	6-8pa
Machine size	L110W70H150CM
Machine weight	300KG

Fully Automatic Car Antenna Winding Machine

Key Features

1. The automatic plate changing and receiving machine is mainly used for high-speed stamping precision terminal products.

2. This model adopts horizontal receiving structure, and the products are collected neatly without touching the terminal head, to ensure the product quality.

3. This machine is suitable for collecting 14 strips at a time, and automatically switches to an empty plate when the plate is full. During the stamping process, there is no need to shut down the punch to realize continuous production.

4. Induction mode: frequency conversion + photoelectric receiving, no paper (broken paper) induction shutdown.

Applications

Create precision coils for electric motors with high consistency.

Motor Manufacturing

Wind coils for transformers and inductors with accuracy and efficiency.

Transformer Production

Ideal for winding coils for inductive components, sensors, and other electronic devices.

Electronics

FAQ

Q: What are the main equipment used for winding?

A: The equipment mainly includes a parallel winding machine, ring winding machine, stator, and rotor winding machine, textile winding machine, voice coil winding machine, etc.

Q: What is a coil winding machine?

A: Electrical coil winding machines are used to wind coils for motors, transformers, inductors, and chokes. Coil winding equipment is used in a variety of wire winding, wire welding, and wire bonding applications.

Q: What are the materials used in coil winding?

A: Copper. Copper is the most common of the electrically conductive wires and is most often used for solenoid coils. It has a low electrical resistance and allows current to flow easily. In terms of conductivity, it is only surpassed by silver - apart from superconductors.

Q: What is the difference between coil and winding?

A: Coil: A coil is formed by connecting several turns in the series. Winding: A winding is formed by connecting several coils in series.

Q: How does a coil winding machine work?

A: A coil winding machine is designed to wrap wire around a core at its most basic. This seemingly simple process is instrumental in creating components that can store electromagnetic energy, transform voltages, or create magnetic fields.

Q: What are the most commonly used materials for windings?

A: Copper is the most common magnet wire choice due to its high conductivity and relatively low cost. For most motors, like the one shown below, we use copper with a thin enamel coating. We tightly wrap the wire to create the winding that will build the electromagnetic field to drive the motor.

Q: What are the parts of a winding machine?

A: The key parts of the cone winding machine are identified as the motor, pulleys, guide, tensioner, cone, cone holder, gear, and yarn package.

As one of the most professional automotive coil winding equipment manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to wholesale durable automotive coil winding equipment made in China here from our factory.
