Main technical parameters of Flat Wire Winding Machine |
|||
|
Product Model |
SQ-8BX1-2 |
SQ-8BX1-3 |
SQ-8BX1-4 |
|
Winding diameter |
≥400 |
≥400 |
≥550 |
|
Cable width |
≥200 |
≥200 |
≥200 |
|
Cable arrangement accuracy |
0.01 |
0.01 |
0.01 |
|
Spindle speed |
1-200rpm |
1-200rpm |
1-200rpm |
|
Spindle center height |
300mm |
300mm |
300mm |
|
Applicable wire diameter |
Flat copper wire： thickness 1-5mm width 1-15mm |
Flat copper wire： thickness 1-5mm width 1-20mm |
Flat copper wire： thickness 1-5mm width 1-30mm |
|
Cable motor |
Servo 0.75KW |
Servo 0.75KW |
Servo 0.75KW |
|
Spindle motor |
frequency conversion 2.2KW+1:10 |
frequency conversion 2.2KW+1:15 |
frequency conversion 3.7KW+1:10 |
|
Supply voltage |
220VAC 50HZ |
220VAC 50HZ |
380VAC 50HZ |
|
Machine power |
3.3KW |
3.6KW |
5.5KW |
|
Supporting wire rack |
Adjustable single axis |
Adjustable single axis |
Adjustable single axis |
|
Dimensions |
1400 X 800 X 1550mm |
1400 X 8001550mm |
1600 X 850m X 1600mm |
|
Equipment weight |
460KG |
490KG |
670KG |
Structure and principle

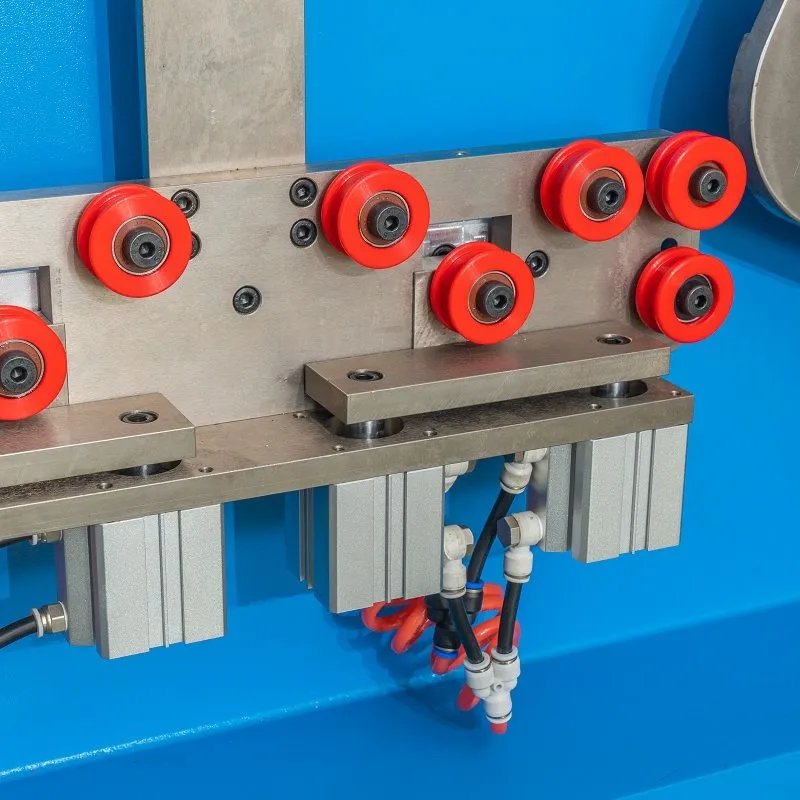

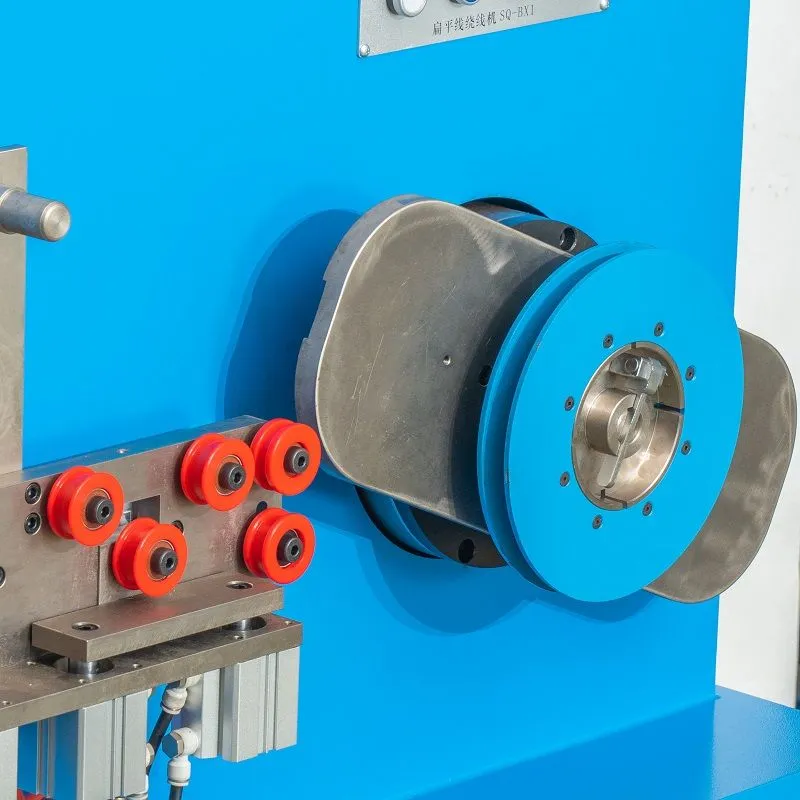

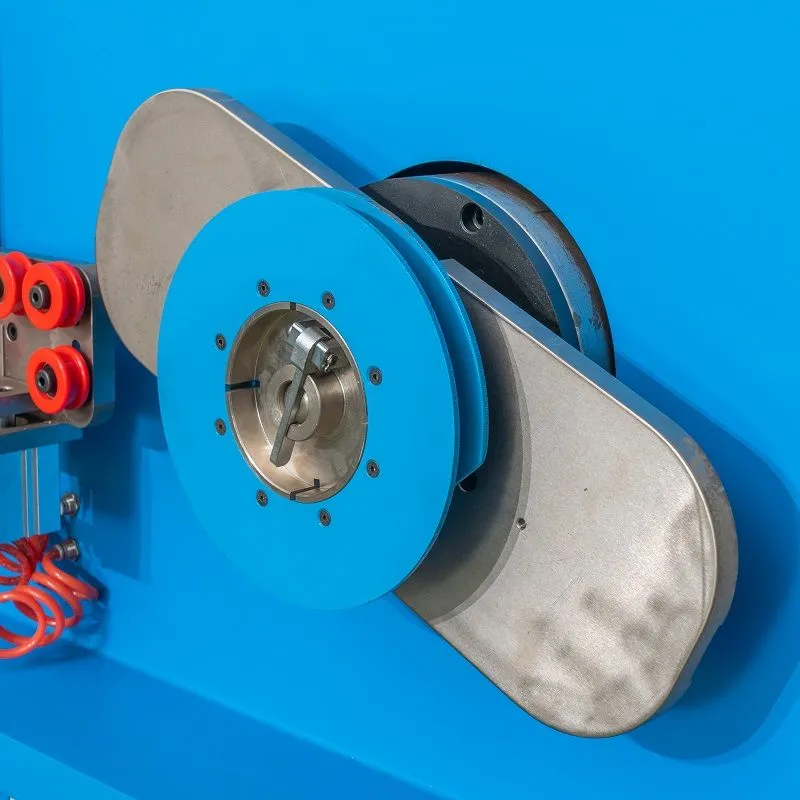

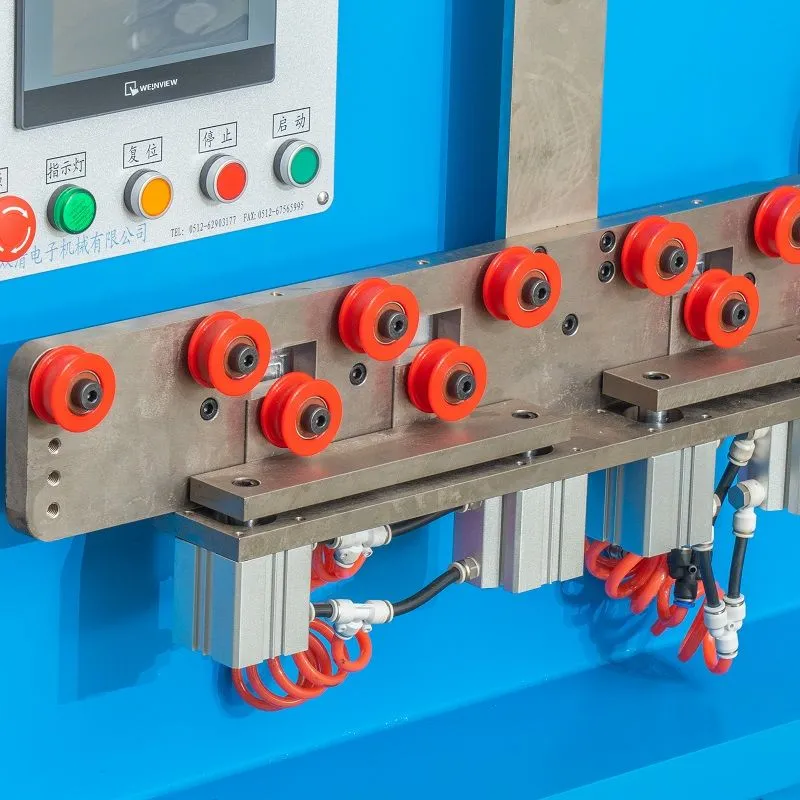

It usually has main components such as winding spindle, wire arrangement mechanism, tension control device, etc. When working, the wire is kept at a certain tension through the tension control system, the spindle drives the winding mold to rotate, and the wire arrangement mechanism makes the wire evenly wound on the mold to form a pancake-shaped coil.
Product Details
Application Areas
It is widely used in the manufacture of electrical equipment such as power transformers, welding machine coils, alpha flat coils, reactors, etc. For example, the high-voltage winding and low-voltage winding manufacturing of large power transformers require the use of pancake winding machines to wind coils with precise turns and shapes to ensure the stability of transformer performance.
Features and advantages
It can achieve high-precision winding, ensuring the number of turns of the coil is accurate, tightly arranged and uniform. And the winding parameters such as wire diameter, number of turns, winding speed, etc. can be adjusted according to different design requirements. Some advanced pancake winding machines also have the characteristics of high degree of automation, which can reduce manual operation errors and improve production efficiency.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, source manufacturer.
Q: Can you design it for us?
A: Equipment can be customized according to your needs and product requirements.
Q: How is the packaging and shipping?
A: When shipping, wooden strips will be used to reinforce and protect the machine.
Q: Can the winding speed of the winding machine be adjusted?

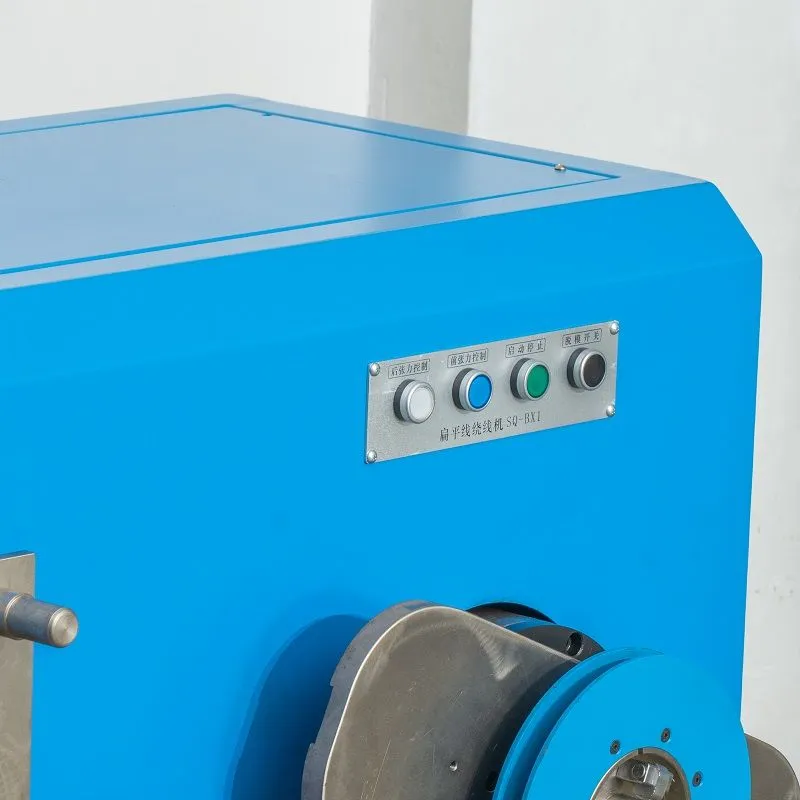

A: The winding speed of the winding machine can be adjusted. Through the control panel on the equipment, the appropriate winding speed can be adjusted according to different winding requirements, such as wire diameter, number of coil turns and other factors.
