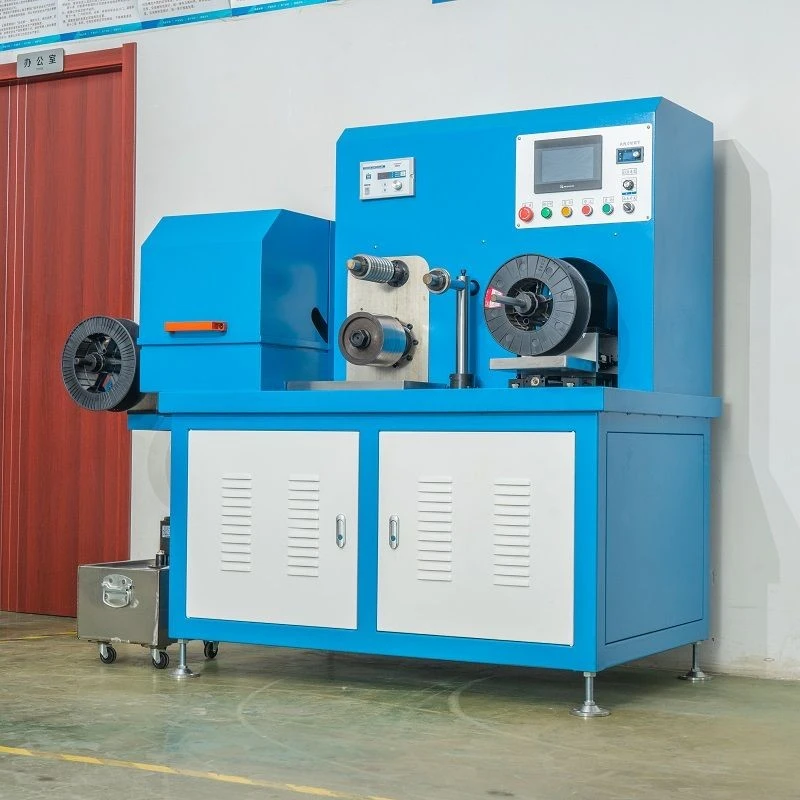

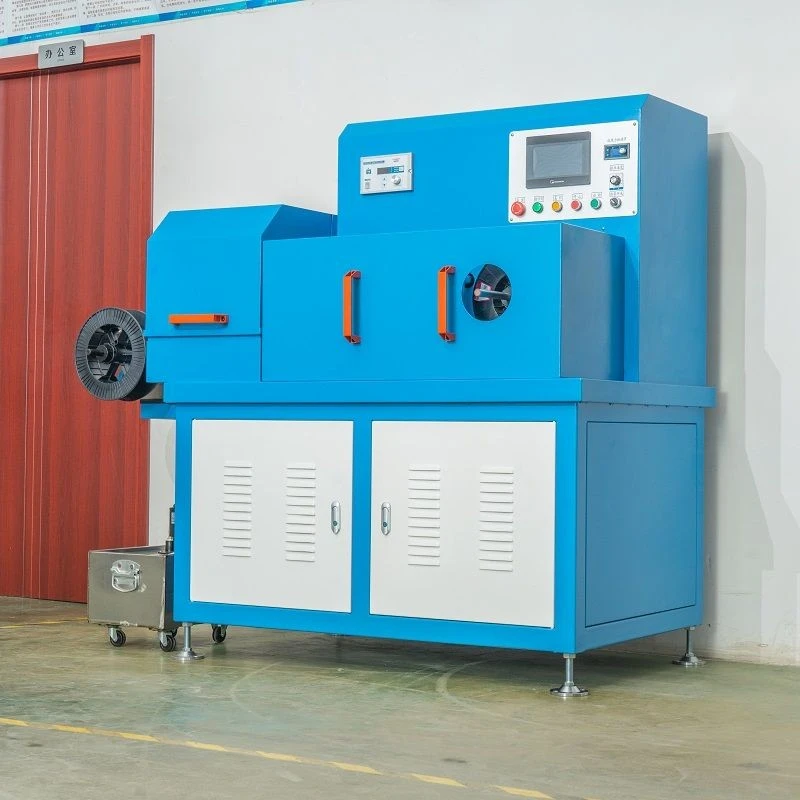

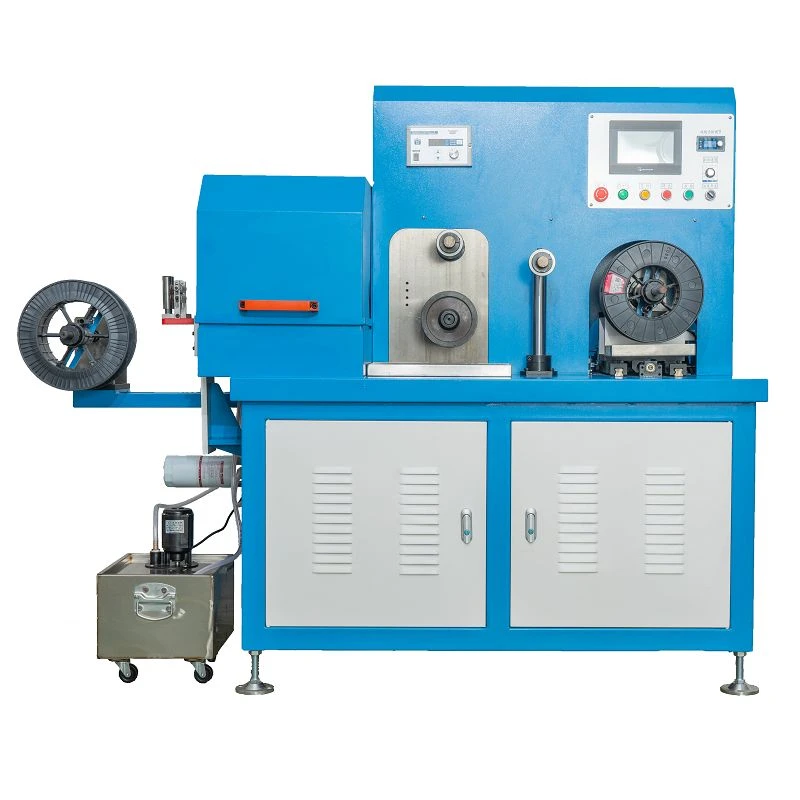

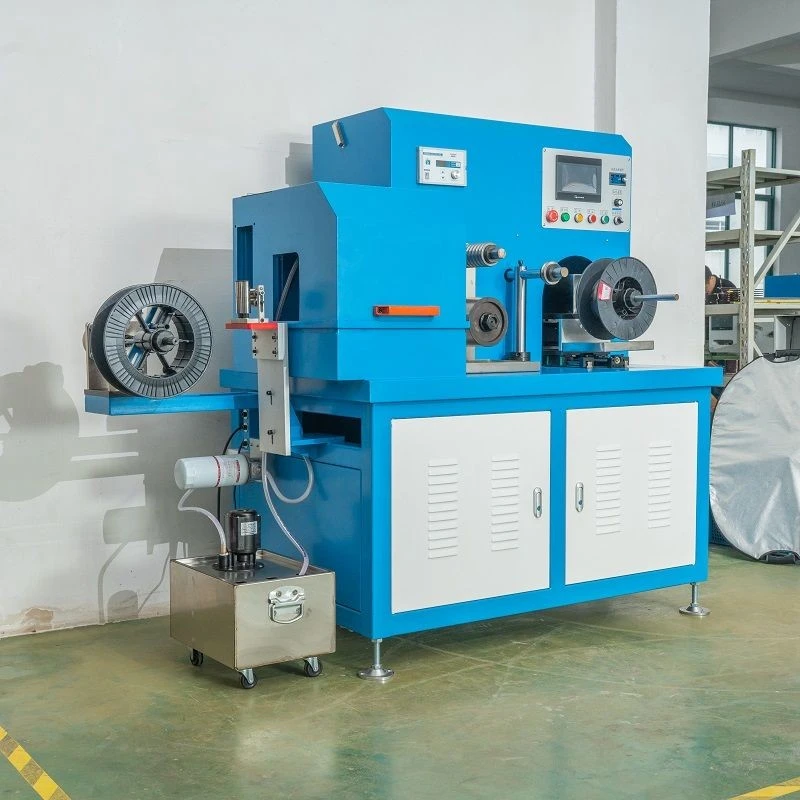

Wire drawing machine main technical parameters |
||
|
Product Model |
SQ-A200C |
SQ-A200L |
|
Diameter of Winding |
≥200 |
≥200 |
|
Wire Width |
≥140 |
≥140 |
|
Wire Arrangement Accuracy |
0.01 |
0.01 |
|
Spindle Speed |
1-1100 |
1-300rpm |
|
Spindle Center Height |
180mm |
180mm |
|
Applicable Wire Diameter |
Round Wire 0.02-1.2mm |
Round Wire：0.02-1.2mm Square Silk：≤1.2X 1.2 |
|
Wire Arrangement Motor |
Panasonic Servo 0.4KW |
Panasonic Servo 0.4KW |
|
Spindle Motor |
frequency conversion 0.75KW |
frequency conversion 0.75KW 1*5 |
|

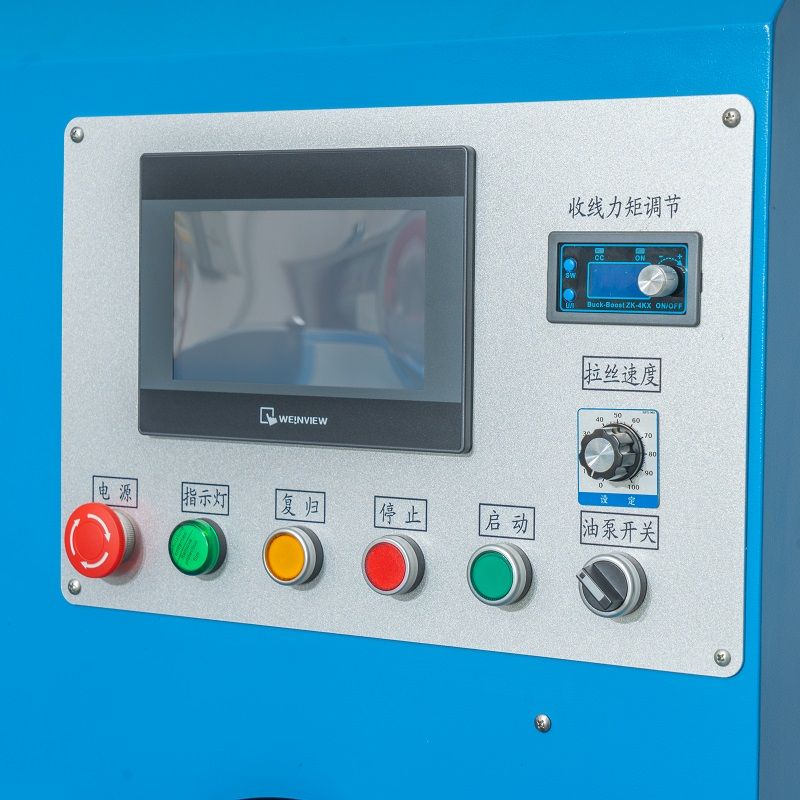

Control System |
Shuangqing CNC-200 |
Shuangqing PLC |
|
Operation Mode |
CNC buttons |
Chinese and English human-machine interface |
|
Supply Voltage |
220VAC 50HZ |
220VAC 50HZ |
|
Machine Power |
1.5KW |
1.5KW |
|
Matching Tension |
Magnetic resistance mechanical tensioner |
Magnetic resistance mechanical tensioner |
|

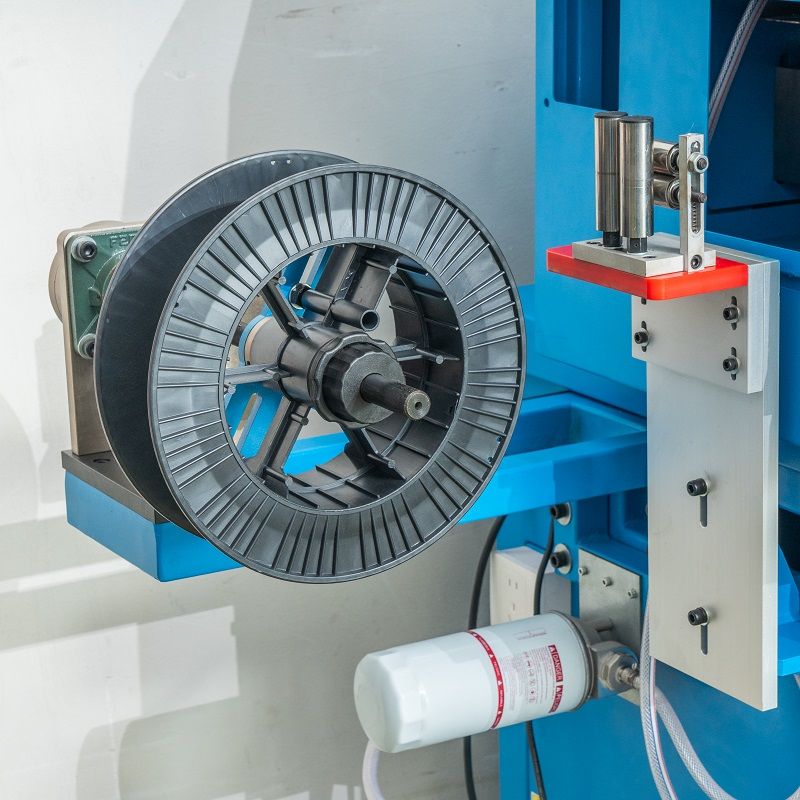

Square Wire Mechanism |
Mechanical passive pay-off |
Magnetic powder electronic tension pay-off stand |
|
Dimensions |
1300mm(L)*800 mm(W)* 900mm(H) |
1300mm(L)*800 mm(W)* 900mm(H) |
|
Equipment Weight |
140KG |
160KG |
SQ-A200C winding machine is independently developed by Suzhou Shuangqing Electronic Machinery Co., Ltd. It is suitable for various types of nickel-titanium square and round super elastic round wires, orthodontic nickel-titanium dental arch wires, and oval bracket dental arch wire molding. The dental arch wire winding machine is a medical device manufacturing equipment used in the field of orthodontics.
Product Features
1. Servo configuration, touch screen input, energy saving and environmental protection, easy operation and maintenance-free;
2. The position of the wire head can be corrected left and right during the winding process, which is more convenient for the winding of special coils or high-precision coils, and can assist in finding the starting point and position of the winding;
3. 0-999 sets of step setting capacity, unique servo motor winding and wire arrangement, can easily set forward and reverse rotation, sparse and dense winding work;
4. High and low speeds can be matched as needed;
5. Workbench desktop structure, high mechanical strength, good performance in winding thick and thin wires, pneumatic thrust tailstock slide design, fast and stable clamping of workpieces;

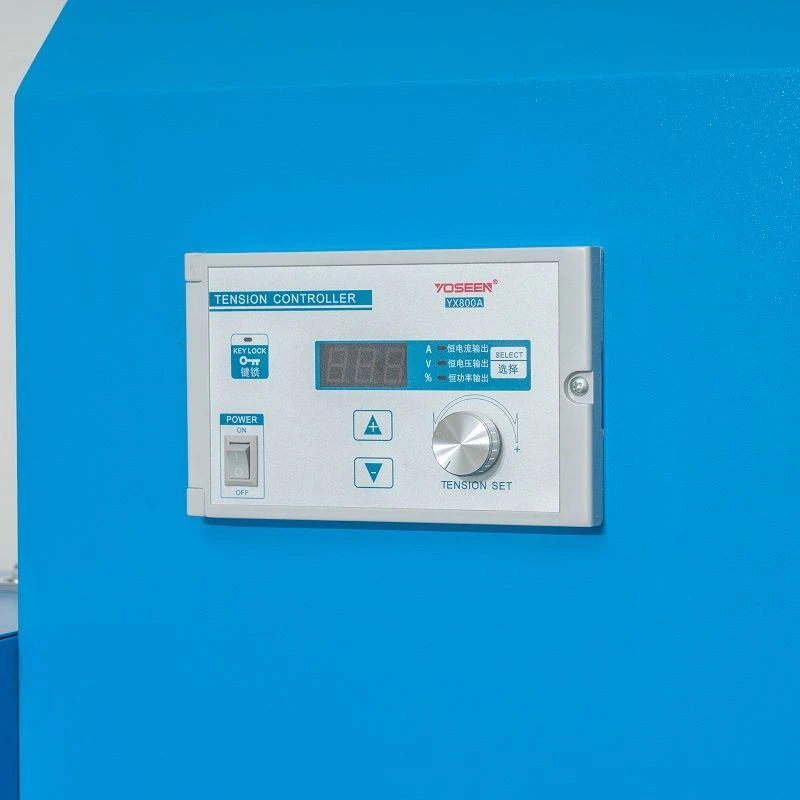

6. The mechanical magnetic damping tensioner design controls the winding tension for smooth operation, neat wire arrangement and high efficiency.
Product Details
Principle and function
It is mainly used to automatically wind the dental arch wire on the mold according to specific shape and size requirements to produce personalized dental arch wires that meet the oral orthodontic needs of different patients. It can accurately control the bending angle, curvature and other parameters of the dental arch wire, so that the dental arch wire can better fit the patient's tooth arrangement, play an effective role in orthodontic treatment, and assist in tooth correction and arrangement adjustment.
Advantages
The dental arch wire produced by the winding machine can improve the accuracy and efficiency of orthodontic treatment. Compared with manually bent dental arch wire, it is more standardized and regulated, reduces human errors, and helps to improve the effect and quality of orthodontic treatment.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, source manufacturer.
Q: What is your payment term?
A: We deliver upon payment.
Q: How long is the warranty period?
A: Warranty period: 1 year
Q: Is winding machine programming complicated?
A: This depends on the specific winding machine model. Simple winding machine programming is relatively easy and can be completed by setting a few basic parameters, such as the number of turns, winding speed, etc. However, some complex winding machines used for winding a variety of complex coils may be more complicated to program, requiring operators to be familiar with programming languages or operating software to set various parameters such as the winding path and wiring method.
